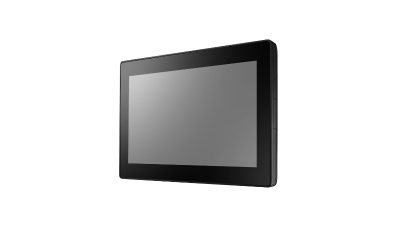

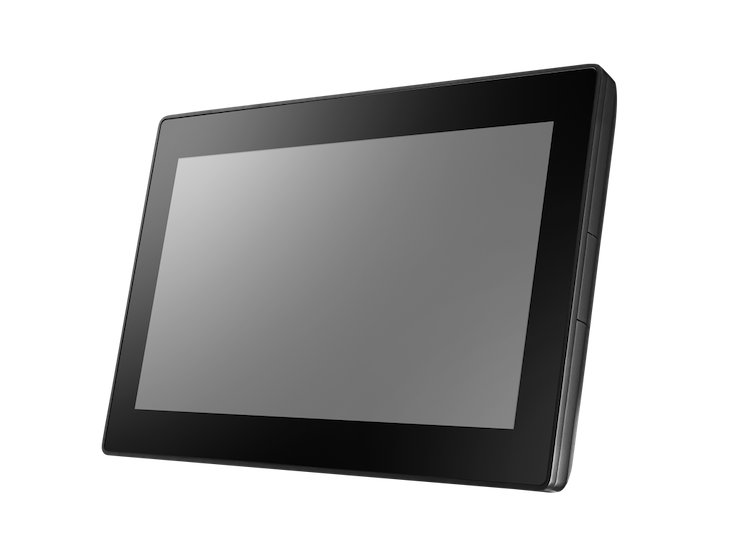

10.1" Ubiquitous Touch Computer with Intel® Celeron® J6412 processors

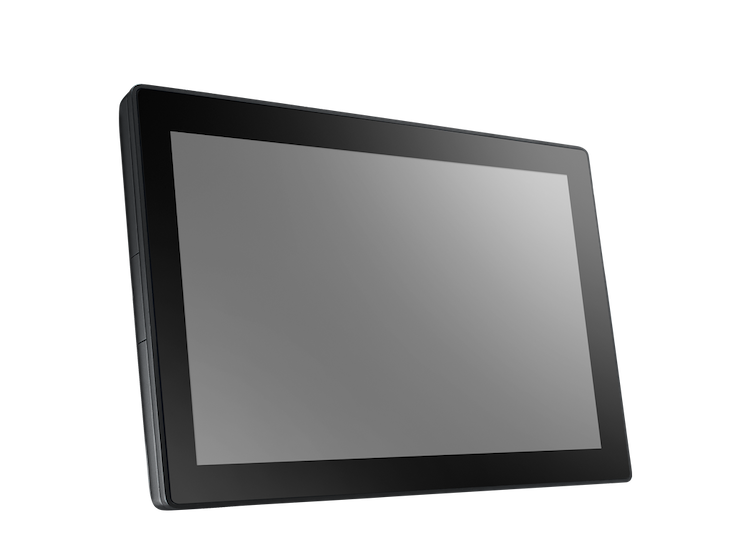

10.1" Ubiquitous Touch Computer with Intel® Celeron® J6412 processors - UTC-310J

UTC-310JP-ATB1E

Dhs. 0.00

Enquire Now

If you would like to know more about this product, send us a message here. You can also contact our experts.

Color
Color	Black
Processor System
CPU	Intel® Celeron® J6412
Base Frequency	2.0GHz/Quad core
Cache	1.5 MB L2 Cache
RAM	8G DDR4
Storage	1 x M.2 2242 SSD / 1 x 2.5 internal SATA storage bay (2.5" N/A with Internal PoE)
OS	Windows 10 IoT LTSC 2021 / Windows 11 IoT / Linux / Android 12.0

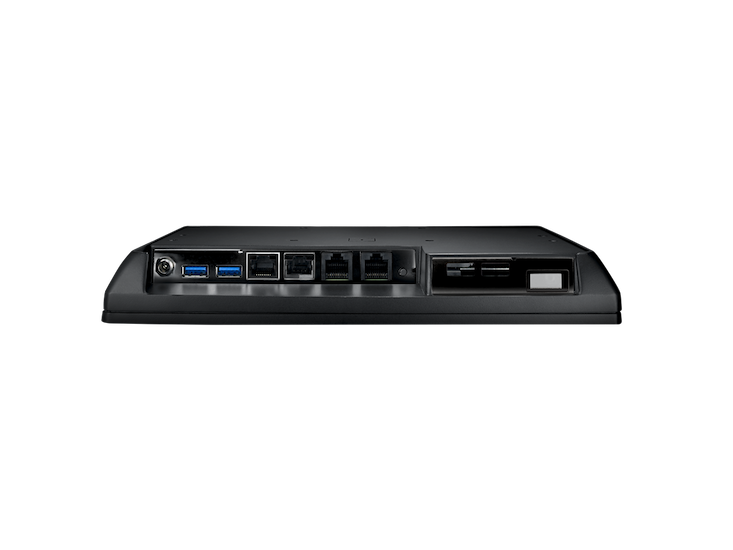

I/O Interface
Ethernet	2 x Gigabit Ethernet ports (1 with optional PoE)
USB Port	2 x USB3.0 / 2 x USB3.0 (optional)
Serial Port	2 x RS-232 COM (COM2 RS-232/422/485)
Speaker	1 x 2W Speaker
Extendable Slot	1 x M.2 key2230, 1 x M.2 key2242

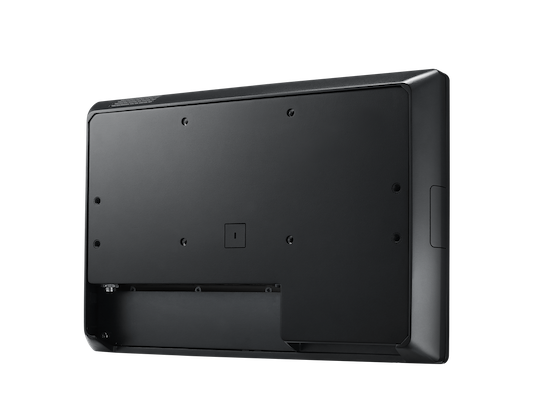

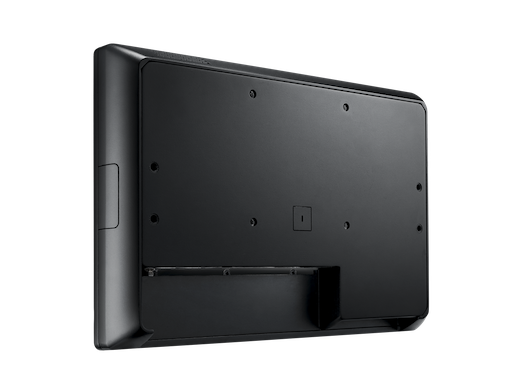

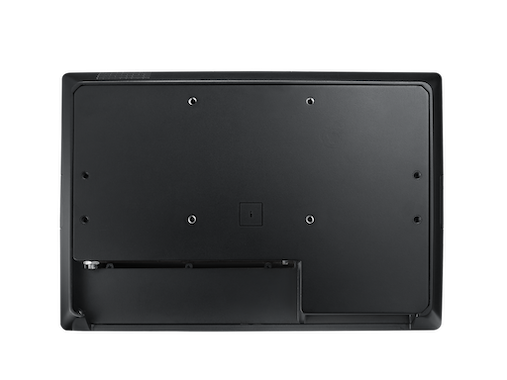

VESA Mounting Patterns
VESA Mounting Patterns	75 x 75 mm
TPM
TPM	TPM 2.0
Environment
Operating Temperature	0 ~ 40 °C (32 ~ 104 °F)
Operating Humidity	10 ~ 95% @ 40°C non-condensing
Vibration	0.5G
Shock	10G peak acceleration (11 msec. duration)
Certification	CE (RED Compliance), FCC, CB, UL, CCC,BSMI
System Protection	IP65 front panel
Power
Input Rating	12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter)
PoE	IEEE 802.3at/30W (Optional)

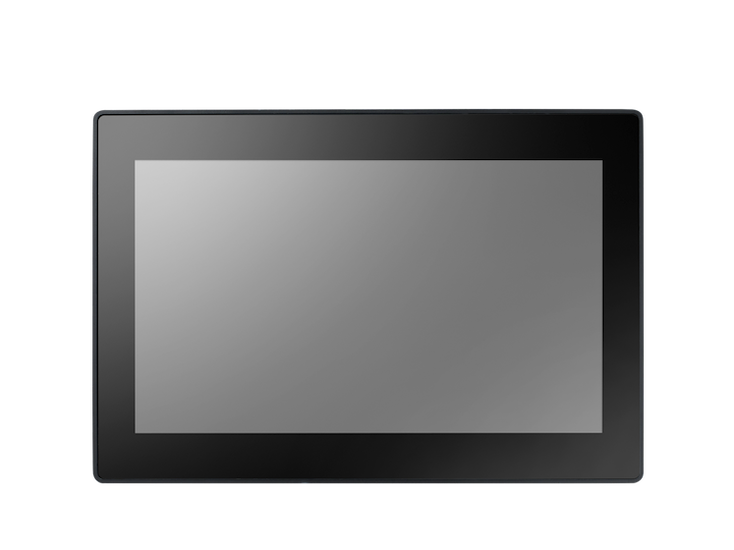

Display
Size	10.1" TFT LCD with LED backlight
Max. Resolution	WXGA (1280 X 800)
Max. Color	16.7M
Brightness	350 cd/m²
View Angle	170°/170°
Ratio	16:10
Pixel Pitch (um)	169.5 x 169.5
Touch Screen
Type	Projected Capacitive
Light Transmission	80% ± 5% / 90%
Controller	USB Interface
