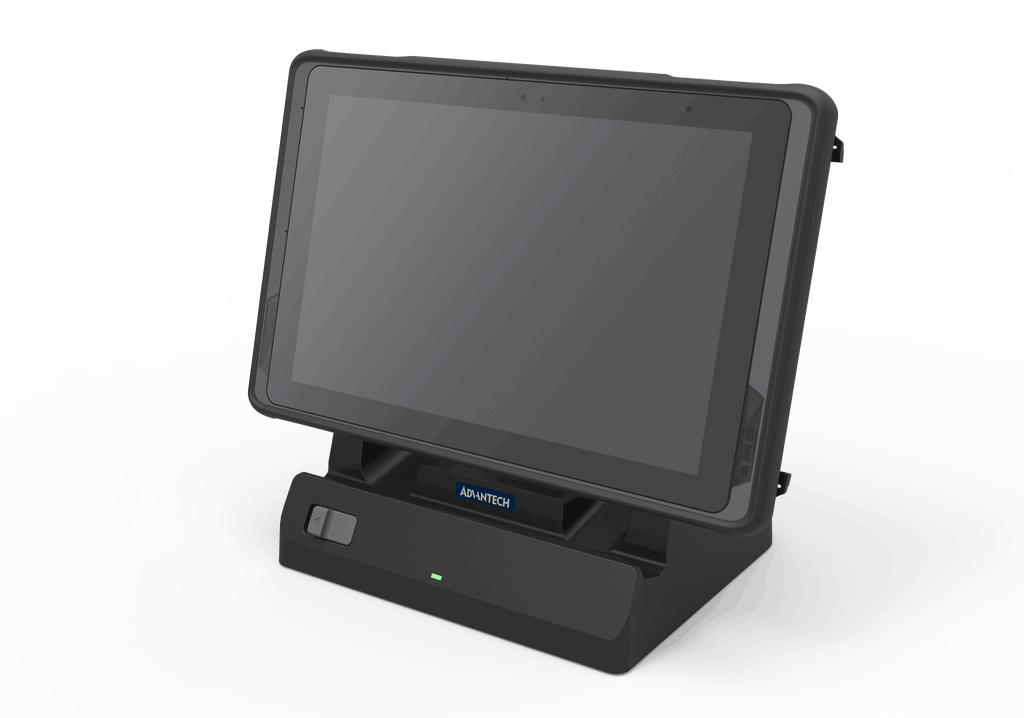

10.1" Industrial-Grade Tablet - AIM-68S

AIM-68S-201000

Dhs. 0.00

Integrated barcode scanner supports data collection
Intel Alder Lake-N processor for Windows 11 IoT Enterprise (GAC)
The battery with capacity meter that shows the remaining power and recharge status minimizes system interruptions for reliable long-duration operation
10" WUXGA full HD display with scratch-resistant Corning® Gorilla® Glass 3 and multi-touch PCAP control
Wi-Fi 6E, Bluetooth® 5.3, NFC technology for seamless communications

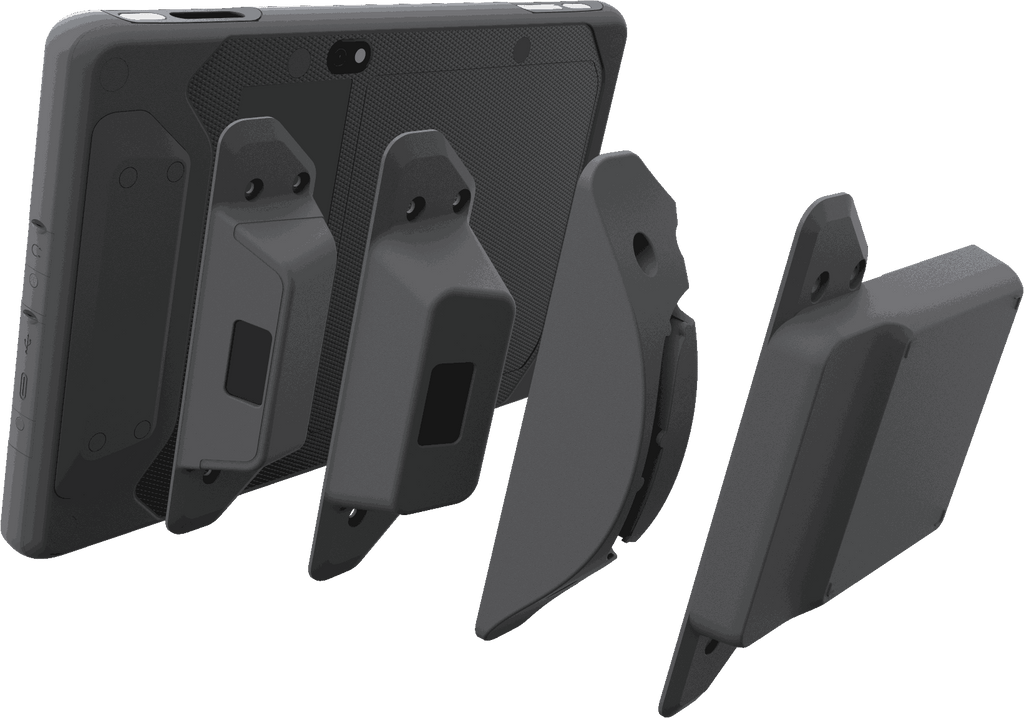

Optional extension include 1D/2D barcode scanner, LAN module
Equipped with DeviceOn/iService software for remote device management

Part Number AIM-68S-201000 AIM-68S-201B00 AIM-68S-201010 AIM-68S-201B10 AIM-68S-201001 AIM-68S-201B01 AIM-68S-201011 AIM-68S-201B11

Enquire Now

If you would like to know more about this product, send us a message here. You can also contact our experts.

Specifications
Downloads

System
Processor	Intel® N200, 3.70 GHz
Memory	8GB LPDDR5
Option
Barcode Scanner	N/A
Computing System
Operating System	Windows 11 IoT Enterprise (GAC)
Storage
Storage	m.2 NVMe SSD 128GB (Optional: 256GB)
Security
_	TPM 2.0
Display
Type	10.1" FHD LCD
Resolution	WUXGA 1920 x 1200
Brightness (cd/m2)	380cd/m2
Touch Type	10-point multi-touch P-CAP touch control
Glass Type	Corning® Gorilla® Glass 3
I/O

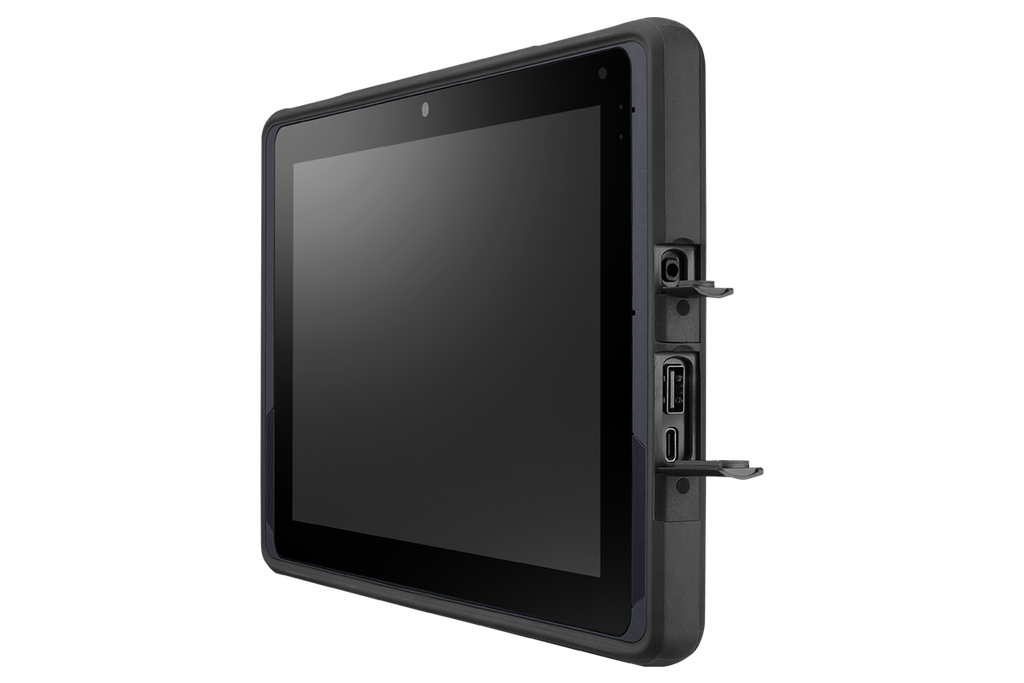

Standard I/O Port	1x USB3.1 Type C for Charging &DP, 1x USB 3.1 type-A
Extended I/O Port	1 x AIM extension 14-pin pogo connector: 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power
Wireless Communication
WLAN/Bluetooth	IEEE 802.11a/b/g/n/ac/ax, Bluetooth® 5.3
NFC	13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica
Connectivity
Docking	1 x AIM docking 16-pin pogo connector: 1 x USB 3.0, 12V power
Speaker	2 x Internal speakers (2 W)
Camera
Front	5.0-megapixel fixed-focus camera
Rear	13.0-megapixel aufo-focus camera with LED flash
Sensors
_	Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
Control Buttons
-	1 x Power button, 2 x volume keys (up/down), 1 x programmable function key
I/O Interface
LED	Full: green (100%); Charging: blue; Low: orange (≤10%)
Environment
Storage Temperature	-20 ~ 60 °C/-4 ~ 140 °F
Operating Temperature	-10 ~ 50°C (14 ~ 122°F)
Charging Temperature	0 ~ 40 °C (32 ~ 104 °F)
IP Rating	IP65
Drop Tested	Up to 120 cm (4 ft) onto plywood
Shock / Vibration	IEC60068-2-27 / IEC60068-2-64
Humidity	Operating: 40 °C @ 95% relative humidity, non-condensingStorage: 60 °C @ 95% relative humidity, non-condensing
Certifications	FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC
Audio
